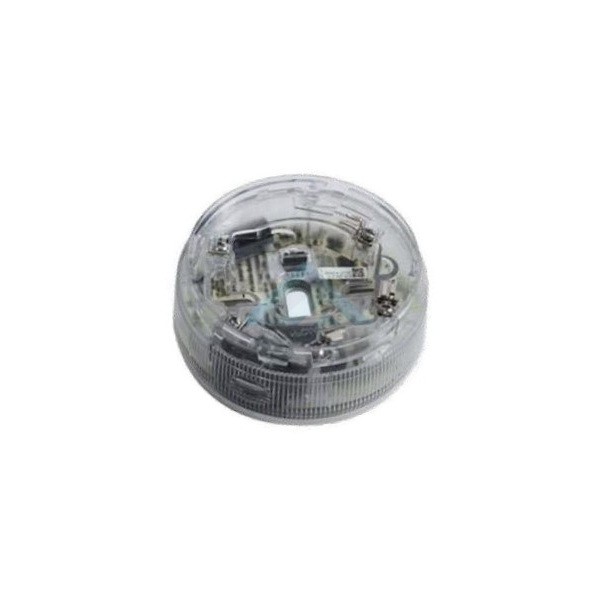

Tyco P80AIB Addressable Sounder Base VID 576.080.010
The Tyco P80SB & P80AIB addressable sounder base and addressable sounder VID base. Tyco P80SB 576.080.002 is an addressable sounder base specifically for use with the ZETTLER addressable detectors. The base incorporates a fire alarm sounder that carries its own address so it can be monitored and controlled from the fire alarm control panel, which is independent of the detector fitted to the base. Both power and communications for the sounder and detector are provided by the two-wire digital loop. This helps to reduce installation costs as no additional wiring is required.
Additionally, the Tyco P80AIB 576.080.010 houses an addressable LED beacon to provide a visual indicator otherwise known as a VID.
Key features include:
- A compact and discrete solution
- One point of installation for detector, sounder and visual indicator with no additional wiring
- Reflective Sound Monitoring (RSM)
- Light electronically monitored by the control panel
- Automatic self-test
- Independent addressable control of the sounder and beacon
- Built-in line isolator
- Select the tone, volume and flash rate using panel configuration software
- 15 selectable tones. Allows users to select the tone with which they are most familiar
- Realistic conventional bell tone
- 4 selectable volumes
- 2 selectable flash rates
- Different tones can be used for fire alarm and class change
- VIDs and sounders synchronized over the entire loop
- A locking pin supplied with the base which prevents the unauthorized removal of the detector
- Replace legacy LPSB3000 and LPAV3000
- Product Code: P80AIB (576.080.010)
How to order (Specify Model): P80AIB (576.080.010)
| Part Number | Description |
| 576.080.010 | P80AIB Addressable Base Sounder VID 576080010Â |
