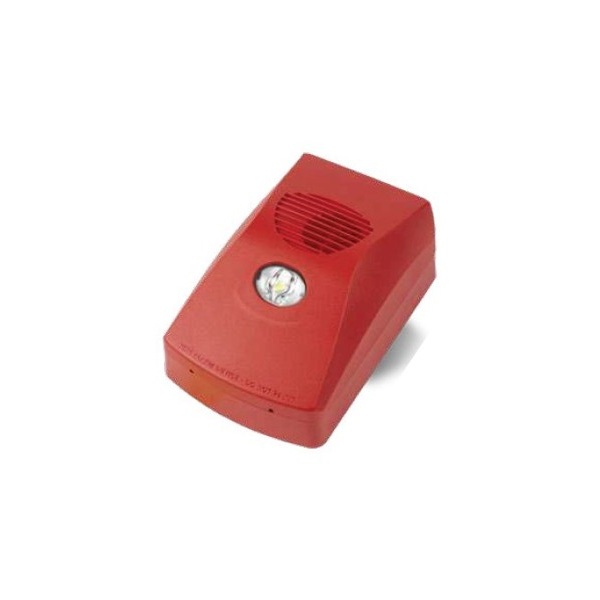

Tyco P80AVR Addressable Wall Sounder VAD Red 576.080.008
The Tyco P80AVR 576.080.008 red indoor loop powered addressable sounder and visual alarm device of the wall category.
Tyco P80AV range of compact addressable wall sounders with a Visual Alarm Device (VAD) includes three models with the same low current and high output specification; red and white body indoor models plus an IP rated version for either outdoor or harsh environment applications.
Sounders considered as the most important of all the alarm devices. It is a mandatory requirement that sounders are used as an integral part of the fire detection and alarm system. VADs used to supplement sounders, providing an effective means of alerting and evacuating occupants of the building, as part of its fire safety strategy.
EN54-23 now provides clarity by standardizing requirements, test methods and performance criteria of Visual Alarm Devices (VADs) and ensures all device parameters measured in a uniform manner throughout Europe.
Main Requirements from EN54-23 are:
- The coverage volume (i.e. volume within which required illumination is achieved) must be stated on the product or supporting documentation
- The VAD should meet the requirement for coverage volume of at least one of the following categories: W (Wall), C (Ceiling), O (Open Class)
- Required illumination of 0.4 lux on a surface perpendicular to the direction of the light emitted from the VAD
- The rate of flash should be stated between 0.5Hz and 2Hz
- The devices must be classified as Type A, indoor and Type B, outdoor
Key features include:
- A compact and unobtrusive sounder solution
- Reflective Sound Monitoring (RSM)
- Reflective Light Monitoring (RLM)
- Automatic self-test
- Shorter light pulse for faster response
- Indoor and outdoor versions
- Indoor models can be semi-flush or surface mounted including a choice of shallow or deep back box
- IP rated option has a deep surface back box for use with suitable IP-rated glands and cabling
- Power and data from the loop. No additional wiring or power supplies required
- Built-in line isolator
- 16 selectable tones
- Realistic conventional bell tone
- 2 selectable volumes
- 2 selectable flash rates
- Select the tone volume and flash rate using panel configuration software
- Independent addressable control of the sounder and beacon
- Different tones can be used for fire alarm and class change
- Rectangle wall mount for an aesthetically pleasing option
- A locking pin/screw supplied which prevents unauthorized removal
- Product Code: P80AVR (576.080.008)
How to order (Specify Model): P80AVR (576.080.008)
| Part Number | Description |
| 576.080.007 | P80AVW Addressable Wall Sounder Visual Alarm Device (VAD) White 576080007 |
| 576.080.008 | P80AVR Addressable Wall Sounder Visual Alarm Device (VAD) Red 576080008 |
| 576.080.009 | P85AVR Addressable Wall Sounder Visual Alarm Device (VAD) IP Red 576080009 |
| 557.080.007 | S-BOXR Shallow Surface Back Box For Indoor Wall Sounder / VAD / VID Red 557080007 |
| 557.080.008 | S-BOXW Shallow Surface Back Box For Indoor Wall Sounder / VAD / VID White 557080008 |
| 557.080.010 | A-BOX Flush Back Box Adaptor For Indoor Wall Sounder / VAD / VID 557080010 |
| 557.080.011 | D-BOXR Deep Surface Back Box For Indoor Wall Sounder / VAD / VID Red 557080011 |
| 557.080.012 | D-BOXW Deep Surface Back Box For Indoor Wall Sounder / VAD / VID White 557080012 |
