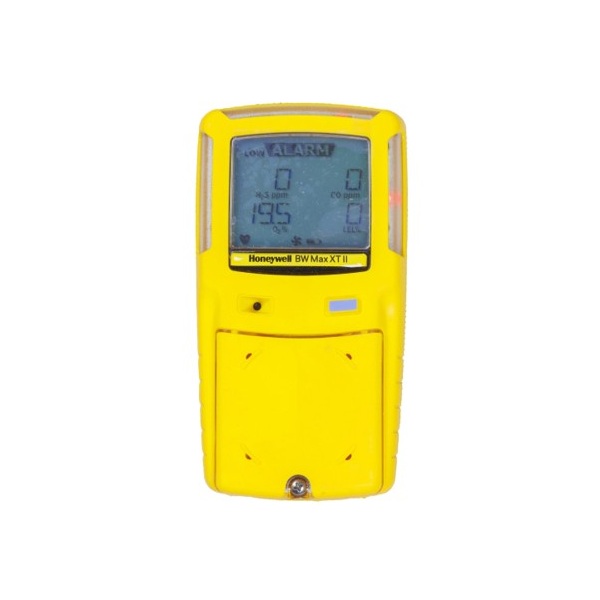

Honeywell BW™ Max XT II Multi-Gas Detector
Honeywell BW™ Max XT II is the smart, simple, economical way to compliance. Reliably monitors up to four hazards H2S, CO, O2 and Combustibles Gases. Workers feel safe and incidents are minimized so everyone will be able to do more. That means savings realized from business continuity and productivity. With the addition of IntelliFlash™, Max XT II multi-gas detector offers continuous visual confirmation of detector operation and compliance.
Monitors Hydrogen Sulfide, Carbon Monoxide, Oxygen and Combustibles Gases
Go the distance, and save
• Minimize costs and training with one-button operation
• More accurate sampling results with SmartSample pump technology
• Compact, comfortable and field tough
Simple operation, with SmartSample pump
Honeywell BW™ Max XT II reliably monitors up to four hazards and combines straightforward one-button operation with our robust, motorized pump for intelligent, remote sampling, ideal for confined spaces. The Honeywell BW™ Max XT II is fully compatible with MicroDock II automated test and calibration system.
Key features & Benefits include:
- Monitors H2S, CO, O2 and Combustibles LEL
- Integrated sampling pump with reliable diaphragm technology
- Best in class block detection with semi-conductor pressure sensor
- Multi-language support in English, French, German, Spanish and Portuguese
- Conveniently manage your detector with Fleet Manager II
- Equipped with standard datalogging and event logging
- Continuous LCD shows real-time gas concentrations
- Continuous visual compliance with IntelliFlash™
- Compact and lightweight design makes it comfortable to wear
- Water-resistant
- Simple automatic calibration procedure; compatible with MicroDock II automatic test and calibration station
- Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start-up
- Bright wide-angled visual alarm bars
- Built-in concussion-proof boot
- Compatible with Honeywell BW™ Connect for real time monitoring
- Product Code: Honeywell BW™ Max XT II
How to order (Specify Model): Select GasAlertMax XT II 4-Gas Detector (XT-XWHM-Y-NA)
Example: XT-XWHM-Y-NA (Max XT II, %LEL, O2, H2S, CO, Yellow)
| Order Number | Description | |
| Yellow | Black | GasAlertMax XT II 4-Gas Detector |
| XT-XWHM-Y-NA | XT-XWHM-B-NA | %LEL, O2, H2S, CO |
| GasAlertMax XT II 3-Gas Detector | ||
| XT-XWH0-Y-NA | XT-XWH0-B-NA | %LEL, O2, H2S |
| XT-XW0M-Y-NA | XT-XW0M-B-NA | %LEL, O2, CO |
| XT-X0HM-Y-NA | XT-X0HM-B-NA | O2, H2S, CO |
| XT-0WHM-Y-NA | XT-0WHM-B-NA | %LEL, H2S, CO |
| GasAlertMax XT II 2-Gas Detector | ||
| XT-XW00-Y-NA | XT-XW00-B-NA | %LEL, O2 |
| XT-00HM-Y-NA | XT-00HM-B-NA | H2S, CO |
| XT-X0H0-Y-NA | XT-X0H0-B-NA | O2, H2S |
| XT-X00M-Y-NA | XT-X00M-B-NA | O2, CO |
| XT-0WH0-Y-NA | XT-0WH0-B-NA | %LEL, H2S |
| XT-0W0M-Y-NA | XT-0W0M-B-NA | %LEL, CO |
| GasAlertMax XT II 1-Gas Detector | ||
| XT-X000-Y-NA | XT-X000-B-NA | O2 |
| XT-0W00-Y-NA | XT-0W00-B-NA | %LEL |
| XT-00H0-Y-NA | XT-00H0-B-NA | H2S |
| XT-000M-Y-NA | XT-000M-B-NA | CO |
Confined Space Kit
| Order Number | Description |
| XT-CK-DL | GasAlertMax XT II deluxe confined space kit – includes IR connectivity kit, 0.5 LPM regulator, 10 ft. / 3 m hose, 3 ft. / 1 m hose, sampling probe, concussion-proof boot, auxiliary filter and Fleet Manager II software CD Detector and calibration gas sold separately |
| XT-CK-CC | Carrying case for GasAlertMax XT II with foam insert |
Carrying Accessories
| Order Number | Description |
| GA-BXT | Concussion-proof boot with stainless steel alligator-style clip |
| GA-HXT | Carrying holster for detector and sampling hose |
| GA-NS-1 | Neck strap with safety release |
| GA-ES-1 | Extension strap (4 ft. / 1.2 m) |
| GA-LY-1 | Short strap (6 in. / 15.2 cm) |
| GA-CH-2 | Chest harness |
Power Options and Spares
| Order Number | Description |
| XT-C01-MC5 | Multi-unit (5) cradle charger |
| GA-PA-1-MC5-UK* | Multi-unit power adaptor |
| GA-VPA-1 | 12-24 VDC vehicle power adaptor (To be plugged in the cigarette plug of the car) |
| GA-PA-3 | 12-24 VDC direct-wire power adaptor (Not for a cigarette plug but direct wired to the
battery of the vehicle) |
| GA-PA-1-UK* | Replacement power adaptor |
*For regions outside the United Kingdom replace “-UK” with: “-EU” for Europe, “-NA” for North America and “-AU” for Australia/China.
Datalogging Accessories
| Order Number | Description |
| GA-USB1-IR | IR connectivity kit with Fleet Manager II software |
Sampling/Testing Equipment and Spares
| Order Number | Description |
| MicroDock II | |
| DOCK2-2-1C1M-00-G | – base station and GasAlertMax XT II docking module with charging cable |
| DOCK2-2-1M-00-G | – base station and GasAlertMax XT II docking module without charging cable |
| DOCK2-0-1C1M-00-G | – GasAlertMax XT II docking module with charging cable |
| DOCK2-0-1M-00-G | – GasAlertMax XT II docking module without charging cable |
| For complete MicroDock II system configuration information, see MicroDock II section. | |
| M0931K | Quick connect fitting spares for hoses, kit of 2 |
| M5-AF-K2 | Auxiliary filter for GasAlertMax XT II pump, kit of 5 |
| M5-AF-K2-100 | Auxiliary filter for GasAlertMax XT II pump, kit of 100 |
| XT-RF-H5 | Hydrophobic pump filter replacement, kit of 5 |
| XT-RF-H50 | Hydrophobic pump filter replacement, kit of 50 |
| XT-RF-H100 | Hydrophobic pump filter replacement, kit of 100 |
| GA-PFMAX | Particulate pump filter replacement, kit of 5 |
| GA-PFMAX-50 | Particulate pump filter replacement, kit of 50 |
| GA-PFMAX-100 | Particulate pump filter replacement, kit of 100 |
| HOSE1-75 | 75ft /23 m sampling hose kit with filters and connectors |
| HOSE2-75 | 75ft /23 m Teflon lined sampling hose kit with filters and connectors |
Sensor Spares and Replacements
| Order Number | Description |
| XT-SS-1 | Quad sensor screen filters, kit of 2 |
| XT-SS-K2 | Quad sensor screen filters, kit of 10 |
| XT-BAT-K1 | Replacement battery Kit |
| XT-RPUMP-K1 | Replacement pump kit |
| SR-W-MP75C | Replacement MICROpeL combustible (LEL) sensor |
| SR-W-MP75 | Replacement MICROpeL combustible (LEL) sensor (Unfiltered) |
| SR-X10-C1 | Replacement oxygen (O2) sensor |
| SR-H-MC | Replacement MICROceL hydrogen sulphide (H2S) sensor |
| SR-M-MC | Replacement MICROceL carbon monoxide (CO) sensor |
| SR-W-MC-DUM | Dummy sensor for combustible sensor location |
| SR-DUMM1 | Dummy sensor for oxygen sensor location |
| SR-TOX-MC-DUM | Dummy sensor for toxic sensor locations |
