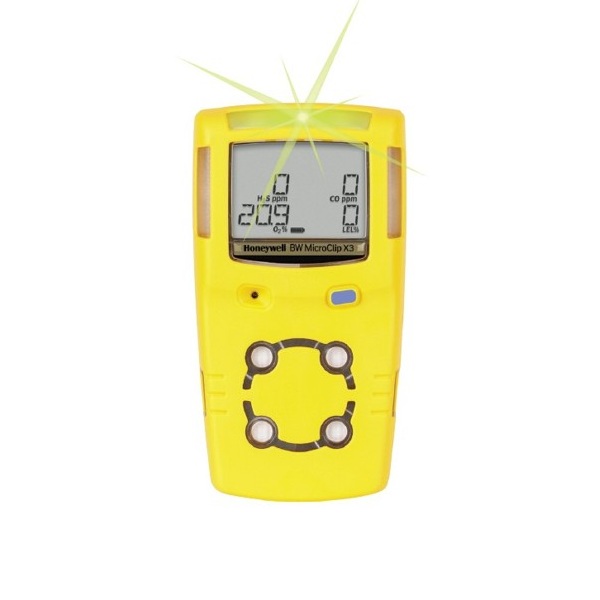

Honeywell BW™ MicroClip X3 Multi-Gas Detector
The industrial Honeywell BW™ MicroClip Series is the world’s most popular multi-gas portable detector, delivering long runtime and reliability — plus small size, low cost and the easiest user experience.
Honeywell BW™ MicroClip X3 is a compact, IP68, 4-gas detector measuring H2S, CO, O2 and Combustibles, featuring reliable one-button operation. Small size. Easy to use. Reliable operation. Affordable protection. With that combination of benefits, it’s no wonder the Honeywell BW™ MicroClip is the world’s most popular multi-gas detector, serving as your trusted companion in hazardous environments — keeping you safe without weighing you down. Plus, it’s the first multi-gas detector with a rating of IP68 for unmatched water protection — up to 45 minutes at a depth of 1.2m. So you can be confident it will stand up to challenging conditions.
Choose from two detectors, both with extended 18-hour battery runtime, one-button operation and Honeywell’s rigorous approach to quality:
Honeywell BW™ MicroClip XL: low up-front cost with a two-year warranty
Honeywell BW™ MicroClip X3: three-year warranty and a new oxygen sensor that extends overall expected service lifetime to 5 years.
Use our unique advanced technology for safety, compliance and productivity.
• Advanced engineering for reliable battery performance
• Reflex™ Technology to ensure sensor responsiveness
• Compact, lightweight and easy to use — no expertise required
• Flashing green IntelliFlash™ light for compliance at a glance
Key features & Benefits include:
- Guaranteed runtime for at least a 12-hour shift — down to -20°C —without compromising LEL detection of hydrogen, acetylene and other combustible gases
- Durable, rechargeable lithium polymer battery — tested to last in extreme environments
- Ergonomic and wearable — doesn’t weigh you down
- Real-time gas concentrations shown on LCD
- Bright, wide-angle visual alarm bars
- IP68 rating ensures maximum protection against dust and water — up to 45 minutes at a depth of 1.2m
- User-friendly, tamperproof operation with just one button and intuitive LCD icons
- IntelliFlash™ light indicating detector has been bump tested and is monitoring correctly
- Self-test of sensors, battery status, circuit integrity and audible/ visual alarms on startup
- Compatible with IntelliDoX docking station for automated bump tests and calibration
- Multi-language support in English, French, German, Spanish and Portuguese
- Device Management with Honeywell SafetySuite
- Compatible with Honeywell BW™ Connect for real time monitoring
- Product Code: Honeywell BW™ MicroClip X3
How to order (Specify Model): Select GasAlertMicroClip X3 4-Gas Detector (MCX3-XWHM-Y-NA)
Example: MCX3-XWHM-Y-NA (MicroClip X3, %LEL, O2, H2S, CO)
| Order Number | Description | |
| GasAlertMicroClip XL | GasAlertMicroClip X3 | GasAlertMicroClip 4-Gas Detector |
| MCXL-XWHM-Y-NA | MCX3-XWHM-Y-NA | %LEL, O2, H2S, CO |
| GasAlertMicroClip 3-Gas Detector | ||
| MCXL-XWH0-Y-NA | MCX3-XWH0-Y-NA | %LEL, O2, H2S |
| MCXL-XW0M-Y-NA | MCX3-XW0M-Y-NA | %LEL, O2, CO |
| MCXL-X0HM-Y-NA | MCX3-X0HM-Y-NA | O2, H2S, CO |
| GasAlertMicroClip 2-Gas Detector | ||
| MCXL-XW00-Y-NA | MCX3-XW00-Y-NA | %LEL, O2 |
| MCXL-00HM-Y-NA | MCX3-00HM-Y-NA | H2S, CO |
| MCXL-X0H0-Y-NA | MCX3-X0H0-Y-NA | O2, H2S |
| MCXL-X00M-Y-NA | MCX3-X00M-Y-NA | O2, CO |
| GasAlertMicroClip 1-Gas Detector | ||
| MCXL-X000-Y-NA | MCX3-X000-Y-NA | O2 |
| MCXL-00H0-Y-NA | MCX3-00H0-Y-NA | H2S |
| MCXL-000M-Y-NA | MCX3-000M-Y-NA | CO |
Note: To order a unit with black housing, change order number component “-Y-” to “-B-“.
Confined Space Kit
| Order Number | Description |
| MC-CK-DL | GasAlertMicroClip deluxe confined space kit – includes manual aspirator kit, IR connectivity kit with Fleet Manager II software, calibration cap with 1 ft. / 0.3 m hose, 0.5 LPM regulator, sampling probe, leather carrying case, auxiliary filter and carrying case with foam insert. Detector and calibration gas sold separately. |
| MC-CK-CC | Carrying case for GasAlertMicroClip with foam and lid insert |
Carrying & Protective Accessories
| Order Number | Description |
| GA-NS-1 | Neck strap with safety release |
| GA-LY-1 | Short strap (6 in. / 15.2 cm) |
| GA-ES-1 | Extension strap (4 ft. / 1.2 m) |
| GA-CH-2 | Chest harness |
| MC2-LC-1 | Black leather and PVC carrying holster |
| MC-AF-K1 | Auxiliary filter kit (complete with filter adaptor and 5 filters) |
| MC-AF-1 | Auxiliary filter adaptor (no filters) |
| MC-SS-AF-K1 | Auxiliary filter replacement for adaptor (kit of 10) |
Sampling & Testing Equipment
| Order Number | Description |
| MC-AS01 | Manual aspirator pump kit with probe (1 ft. / 0.3 m) |
| MC-TC-1 | Test cap and hose (1 ft. / 0.3 m) replacement |
Power Options and Spares
| Order Number | Description |
| MC2-C01-MC5 | Multi-unit (5) cradle charger |
| GA-PA-1-MC5-NA* | Multi-unit (5) wall outlet power adaptor |
| GA-VPA-1 | 12-24 Vdc vehicle power adaptor |
| GA-PA-3 | 12-24 Vdc direct-wire power adaptor |
| GA-PA-1-NA* | Replacement wall outlet power adaptor |
*For regions outside North America replace “-NA” with: “-EU” for Europe, “-UK” for United Kingdom and “-AU” for Australia/China.
Datalogging Accessories
| Order Number | Description |
| GA-USB1-IR | IR connectivity kit with Fleet Manager II software |
MicroDock II
| Order Number | Description |
| MicroDock II Automated Calibration and Testing Station: | |
| DOCK2-2-1C1P-00-G | – Base station and GasAlertMicroClip docking module with charging cable |
| DOCK2-2-1P-00-G | – Base station and GasAlertMicroClip docking module without charging cable |
| DOCK2-0-1C1P-00-G | – GasAlertMicroClip docking module with charging cable |
| DOCK2-0-1P-00-G | – GasAlertMicroClip docking module without charging cable |
Replacement Sensor Screens
| Order Number | Description |
| MC2-SS | Replacement quad sensor screen filters for GasAlertMicroClip XL / X3 (kit of 2) |
| MC2-SS-K1 | Replacement quad sensor screen filters for GasAlertMicroClip XL / X3 (kit of 10) |
Replacement Sensors
| Order Number | Description |
| SR-W-MP75C | Replacement MICROpeL® combustible (LEL) sensor |
| SR-X2V | Replacement oxygen (O2) sensor (2 year, for GasAlertMicroClip XL) |
| SR-X3P | Replacement oxygen (O2) sensor (3 year, for GasAlertMicroClip X3) |
| SR-H-MC | Replacement MICROceL® hydrogen sulfide (H2S) sensor |
| SR-M-MC | Replacement MICROceL® carbon monoxide (CO) sensor |
| SR-W-MC-DUM | Dummy sensor for combustible (LEL) sensor location |
| SR-DUMM1 | Dummy sensor for the oxygen sensor location |
| SR-TOX-MC-DUM | Dummy sensor for toxic sensor locations |
Calibration & Testing Equipment
| Order Number | Description |
| CG-Q34-4 | Quad-gas: CH4 (2.5%), O2 (18.0%), H2S (25 ppm), CO (100 ppm), 34 L, balance N2 (requires REG-DF-1 or REG-0.5) |
| CG-Q58-4 | Quad-gas: CH4 (2.5%), O2 (18.0%), H2S (25 ppm), CO (100 ppm), 58 L, balance N2 (requires REG-DF-1 or REG-0.5) |
| REG-DF-1 | Demand flow regulator (for use with MicroDock II) |
| REG-0.5 | Calibration gas regulator (0.5 LPM) |
| C2-HOSE1-1 | Calibration hose, Tygon (1 ft. / 0.3 m, 1/8 in. I.D., 1/4 in. O.D.) |
| MK-CG2-58 | Wall mount (adjustable) for 34, 58, 103 L gas cylinders, red |
Service Parts
| Order Number | Description |
| MC-LCD-K1 | Replacement LCD kit for GasAlertMicroClip XL / X3 |
| MCXL-FC1 | Replacement front enclosure (yellow) for GasAlertMicroClip XL |
| MCXL-FC1B | Replacement front enclosure (black) for GasAlertMicroClip XL |
| MCX3-FC1 | Replacement front enclosure (yellow) for GasAlertMicroClip X3 |
| MCX3-FC1B | Replacement front enclosure (black) for GasAlertMicroClip X3 |
| Replacement combustible sensor (See Replacement Sensors) | |
| MCXL-MPCB1 | Replacement main PCB with battery and screws for GasAlertMicroClip XL |
| MCX3-MPCB1 | Replacement main PCB with battery and screws for GasAlertMicroClip X3 |
| MC2-FPCB1 | Replacement Flex PCB for GasAlertMicroClip XL |
| MCX3-FPCB1 | Replacement Flex PCB for GasAlertMicroClip X3 |
| MCXL-BC1 | Replacement back enclosure (yellow) with screws and alligator clip for GasAlertMicroClip XL |
| MCXL-BC1B | Replacement back enclosure (black) with screws and alligator clip for GasAlertMicroClip XL |
| MCX3-BC1 | Replacement back enclosure (yellow) with screws and alligator clip for GasAlertMicroClip X3 |
| MCX3-BC1B | Replacement back enclosure (black) with screws and alligator clip for GasAlertMicroClip X3 |
| MC-SCREW-K1 | Replacement screws (kit of 20) |
| Replacement toxic and oxygen sensors (See Replacement Sensors) | |
| Replacement sensor screen (See Replacement Sensor Screens) | |
| GA-VM-2 | Replacement vibration motor |
GasAlertMicroClip Region Codes
| For orders outside the North America, change order number suffix “-NA” to: | |
| “-EU” | Europe |
| “-UK” | United Kingdom |
| “-AU” | Australia |
| “-CN” | China/New Zealand |
| “-BR” | Brazil |
| “-OR” | Other region with 3-pin UK plug |
| “-OE” | Other region with 2-pin UK plug |
Gas Legend
| %LEL | Combustible (W) |
| O2 | Oxygen (X) |
| H2S | Hydrogen sulphide (H) |
| CO | Carbon monoxide (M) |
